Bosch Rexroth Axial piston variable motor A6VM Series 63

Features
▶▶ Robust motor with long service life
▶▶ Approved for very high rotational speeds
▶▶ High control range (can be swiveled to zero)
▶▶ High torque
▶▶ Variety of controls
▶▶ Optionally with flushing and boost-pressure valve
mounted
▶▶ Optionally with integrated or mounted counterbalance
valve
▶▶ Bent-axis design

Hydraulic fluids
The A6VM variable motor is designed for operation with HLP
mineral oil according to DIN 51524. Application instructions
and requirements for hydraulic fluids should be taken from
the following data sheets before the start of project planning:
▶▶ 90220: Hydraulic fluids based on mineral oils and
related hydrocarbons
▶▶ 90221: Environmentally acceptable hydraulic fluids
▶▶ 90222: Fire-resistant, water-free hydraulic fluids (HFDR/
HFDU)
▶▶ 990223: Fire-resistant, water-containing hydraulic fluids
(HFC, HFB)
▶▶ 90225: Axial piston units for operation with water-free
and water-containing fire-resistant hydraulic fluids
(HFDR, HFDU, HFB, HFC).

Notes on selection of hydraulic fluid
The hydraulic fluid should be selected such that the operating
viscosity in the operating temperature range is within
the optimum range (νopt see selection diagram).

Notice
At no point of the component may the temperature be
higher than 115 °C. The temperature difference specified in
the table is to be taken into account when determining the
viscosity in the bearing.
If the above conditions cannot be maintained due to
extreme operating parameters, we recommend the use of a
flushing and boost-pressure valve (see page 73).

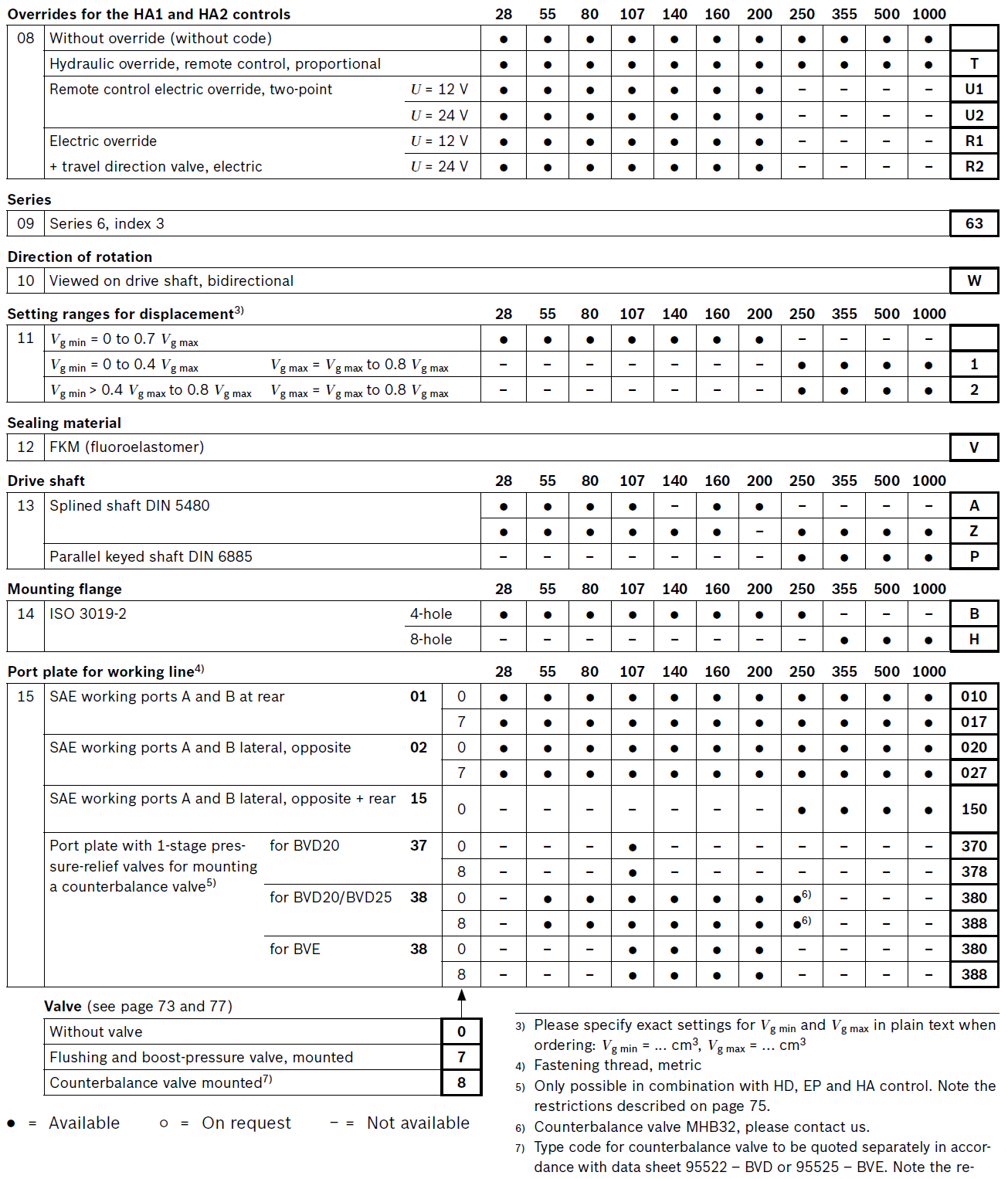

Type code

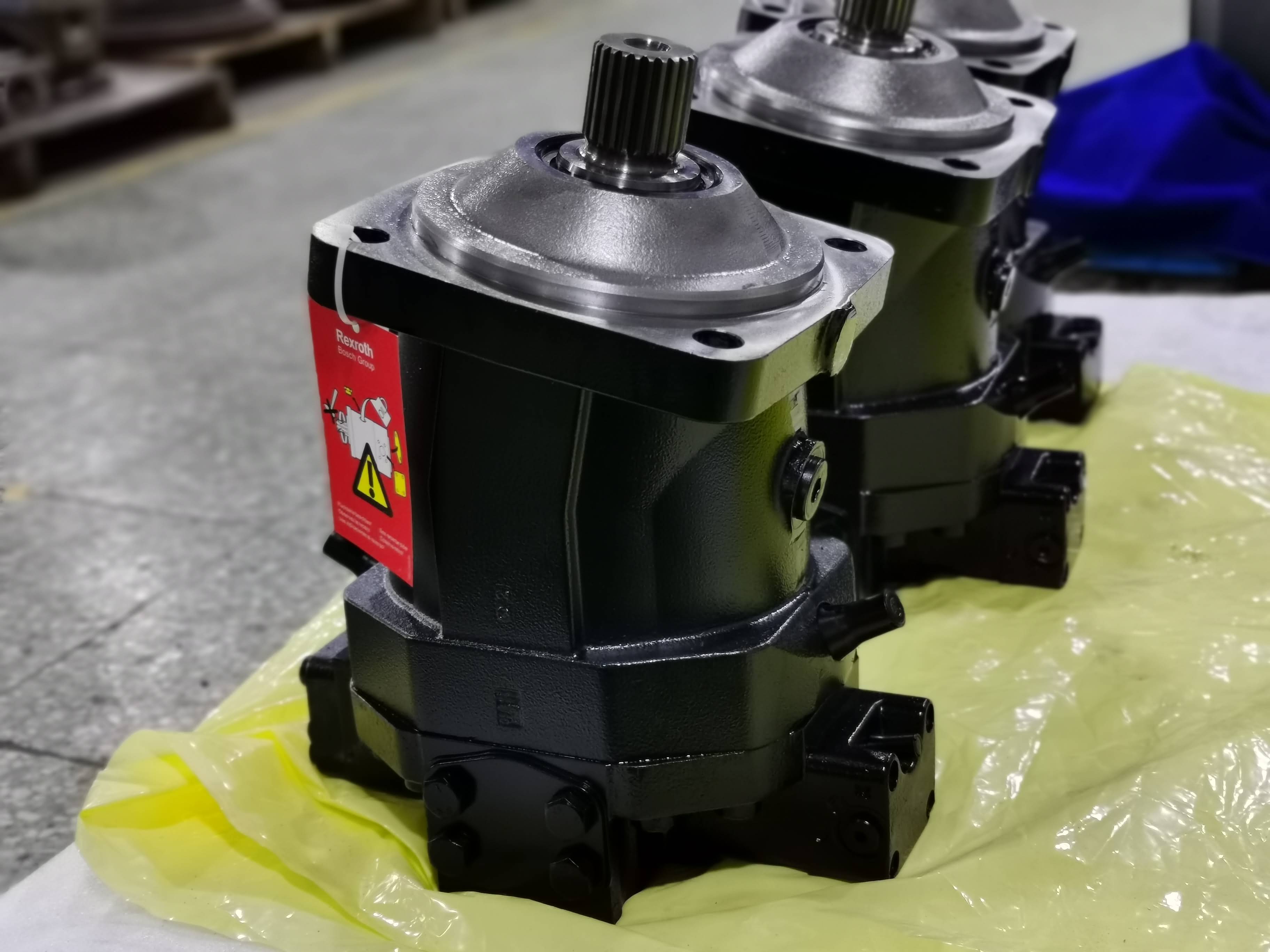

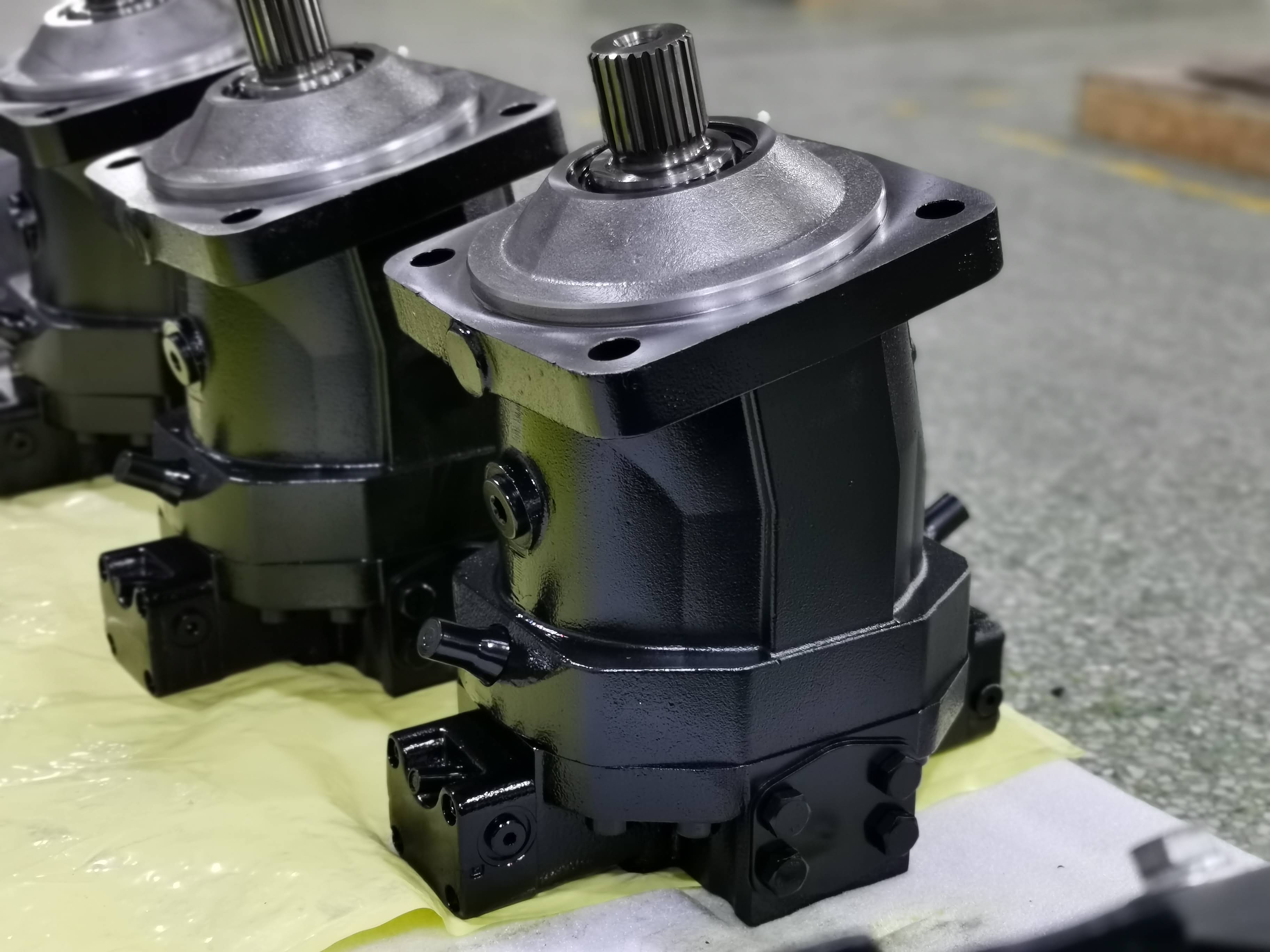

Product Photos

  MKS hydraulic specializes in producing, sales and maintenance of hydraulic pumps and motors. The company has been working in hydraulic field since 1995 and wealth professional knowledge and field experience. We have developed and produced A4VSO, A4FO, A4FM, A10VSO, Parker PV varies hydraulic pumps and motors. Other series are also in the researching and developing design. With the concept “quality wins market, integrity casts the brand”, we strictly implement the testing standard and strive to be a hydraulic company worthy of customer’s trust.
  MKS products have been widely used in iron and steel metallurgy, forging, ceramics, water conservancy and hydra-power, construction machinery, ship, mining, agricultural machinery and other fields.

  MKS technical team has more than 10 R&D and designer which committed to research and development of hydraulic components,3D dynamic simulation process to upgrade,cooperating with advanced testing equipment, makes every effort to keep improving of new varieties of each series dedicated high durability efficiency parts as our priority, to meet the needs of users, and pursuit of every perfect products is the aim. The R&D department is a cohesion vitality and pursues of the enterprise brand.

  MKS main products are: plunger pump, vane pump, gear pump, direction valve, pressure valve, flow control valve, proportional valve, cartridge valve and hydraulic fittings, etc. We undertake all kinds of hydraulic system equipment design and manufacturing. The products are widely used in engineering, plastic machinery, shoes, casting, metallurgical, mining, metal cutting tools and other kinds of hydraulic system.
