Bosch Rexroth Axial Piston Variable Pump A11V(L)O Series 40 Construction machinery, agricultural machinery, forestry machinery

For more detailed parameters of A11V(L)O and other models, please contact our sales staf

Features
▶ Swash plate type axial piston variable displacement pump for hydraulic drives in open circuits.
▶ Preferred for mobile applications.
▶ Flow rate proportional to drive speed and displacement.
▶ Flow rate infinitely adjustable by adjusting the swash plate angle.
▶ Pump can be operated as self-priming or with booster pump.
▶ Special control device program for mobile applications with different control and regulation functions.
▶ Universal through-drive for mounting gear pumps and axial piston pumps (even with the same size), i.e. 100 % through-drive.
▶ Compact design
▶ High efficiency
▶ High power density
▶ Low noise level

Safety instructions
-The A11V(L)O pump is designed for use in open circuits.
-Project planning, assembly and commissioning of the axial piston elements must be carried out by qualified personnel.
-The working line ports and function ports are designed only for hydraulic lines.
-During operation and shortly after operation, there is a risk of burns from the axial piston elements (especially the solenoids). Take appropriate safety measures (e.g. wearing protective clothing).
-Depending on the operating conditions of the axial piston elements (operating pressure, oil temperature), the characteristics may change.
-Pressure ports:
The ports and fixing threads are designed for the maximum specified pressure. The machine or system manufacturer must ensure that the safety factors for the connecting elements and lines meet the specified operating conditions (pressure, flow, hydraulic oil, temperature).
-The data and instructions contained here must be followed.
-The following tightening torques apply:
·Threaded holes for axial piston elements:
The maximum permissible tightening torque MG max for threaded holes is the maximum value and must not be exceeded.
·Connectors:
For the tightening torques of the connectors used, refer to the manufacturer's instructions.
· Fixing screws:
For fixing screws in accordance with DIN 13, we recommend that the tightening torque be checked individually in accordance with VDI 2230.
· Locking screws:
For metal locking screws supplied with the axial piston element, apply the required tightening torque MV for the locking screws.
- This product component is not approved in accordance with the general machine safety concept in accordance with DIN EN ISO 13849.

Control mode

LR power control

DR constant pressure control

HD hydraulic control, related to pilot pressure

EP electric proportional control

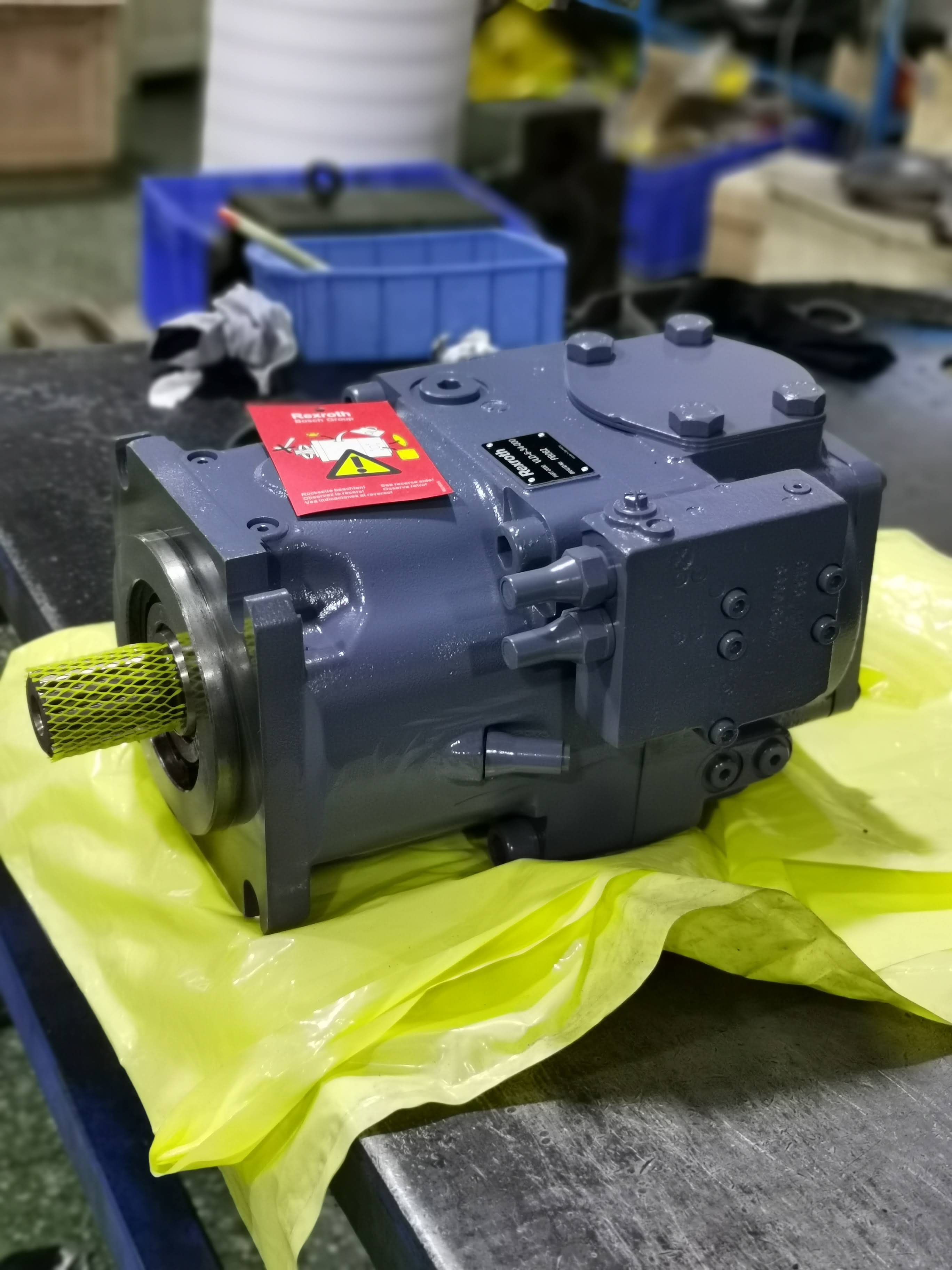

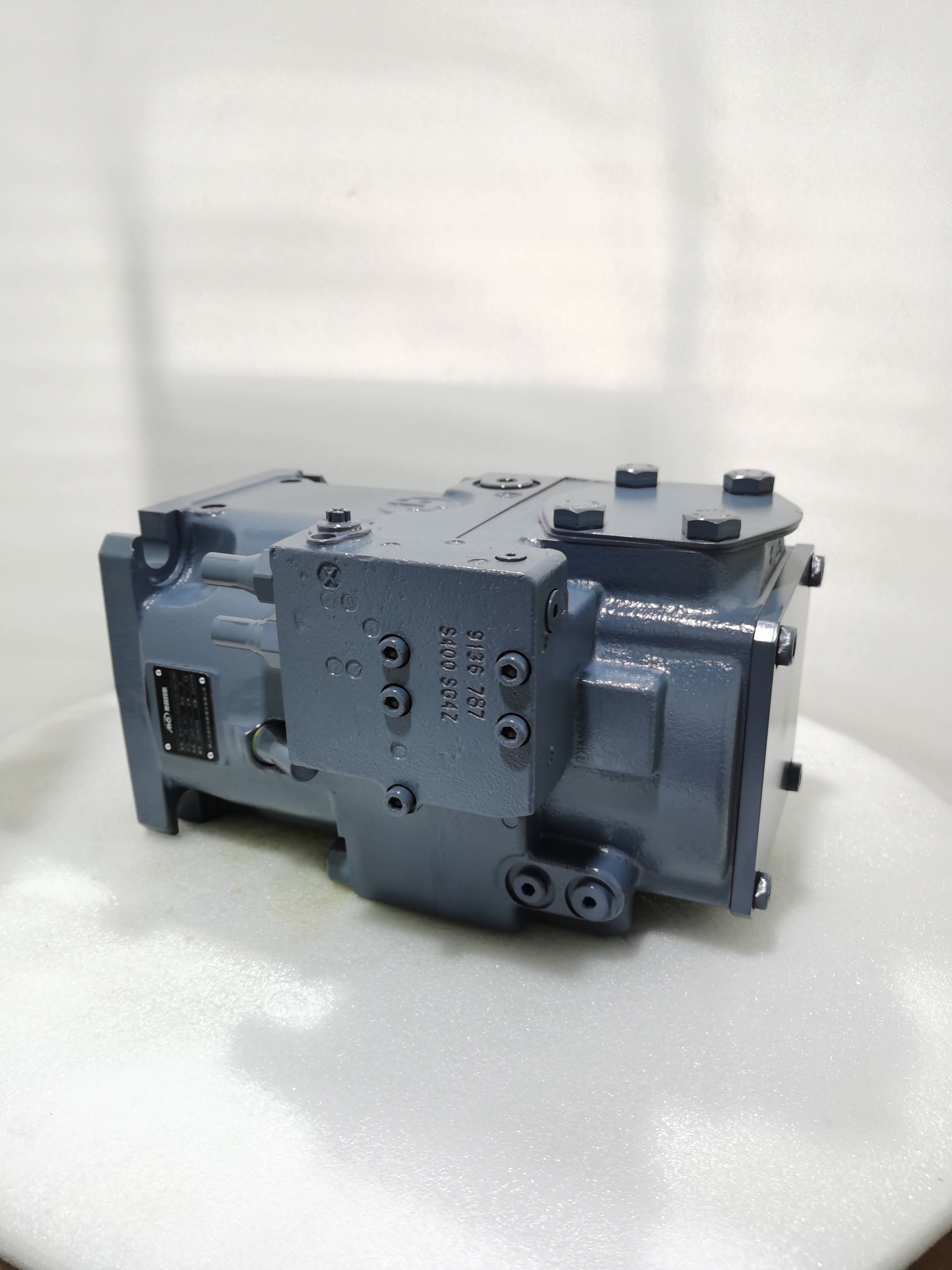

Product photos
