Bosch Rexroth Axial Piston Variable Pump A11VO Series 1 Construction machinery, agricultural machinery, forestry

For more detailed parameters of A11VO and other models, please contact our sales staf

Features
– Variable axial piston pump of swashplate design for hydrostatic
drives in open circuit hydraulic system.
– Designed primarily for use in mobile applications.
– The pump operates under self-priming conditions, with tank
pressurization, or with an optional built-in charge pump
(impeller).
– A comprehensive range of control options is available
matching any application requirement.
– Power control option is externally adjustable, even when the
pump is running.
– The through drive is suitable for adding gear pumps and axial
piston pumps up to the same, i.e. 100% through drive.
– The output flow is proportional to the drive speed and
infinitely variable between qV max and qV min = 0.

Safety instructions
-The A11VO pump is designed for use in open circuits.
-Project planning, assembly and commissioning of the axial piston elements must be carried out by qualified personnel.
-The working line ports and function ports are designed only for hydraulic lines.
-During operation and shortly after operation, there is a risk of burns from the axial piston elements (especially the solenoids). Take appropriate safety measures (e.g. wearing protective clothing).
-Depending on the operating conditions of the axial piston elements (operating pressure, oil temperature), the characteristics may change.
-Pressure ports:
The ports and fixing threads are designed for the maximum specified pressure. The machine or system manufacturer must ensure that the safety factors for the connecting elements and lines meet the specified operating conditions (pressure, flow, hydraulic oil, temperature).
-The data and instructions contained here must be followed.
-The following tightening torques apply:
·Threaded holes for axial piston elements:
The maximum permissible tightening torque MG max for threaded holes is the maximum value and must not be exceeded.
·Connectors:
For the tightening torques of the connectors used, refer to the manufacturer's instructions.
· Fixing screws:
For fixing screws in accordance with DIN 13, we recommend that the tightening torque be checked individually in accordance with VDI 2230.
· Locking screws:
For metal locking screws supplied with the axial piston element, apply the required tightening torque MV for the locking screws.
- This product component is not approved in accordance with the general machine safety concept in accordance with DIN EN ISO 13849.

Control mode

LR power control

DR constant pressure control

HD hydraulic control, related to pilot pressure

EP electric proportional control

Ordering code

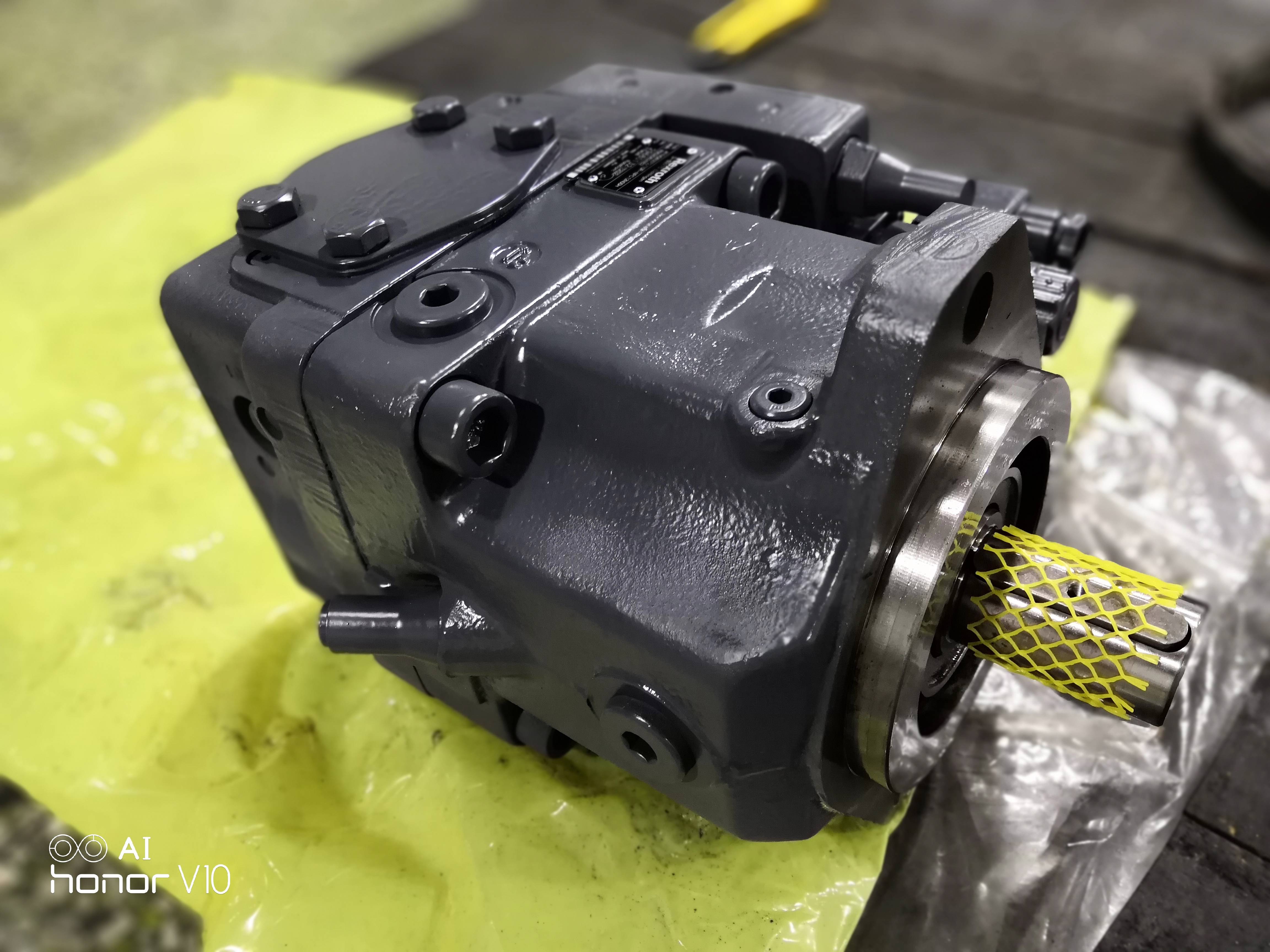

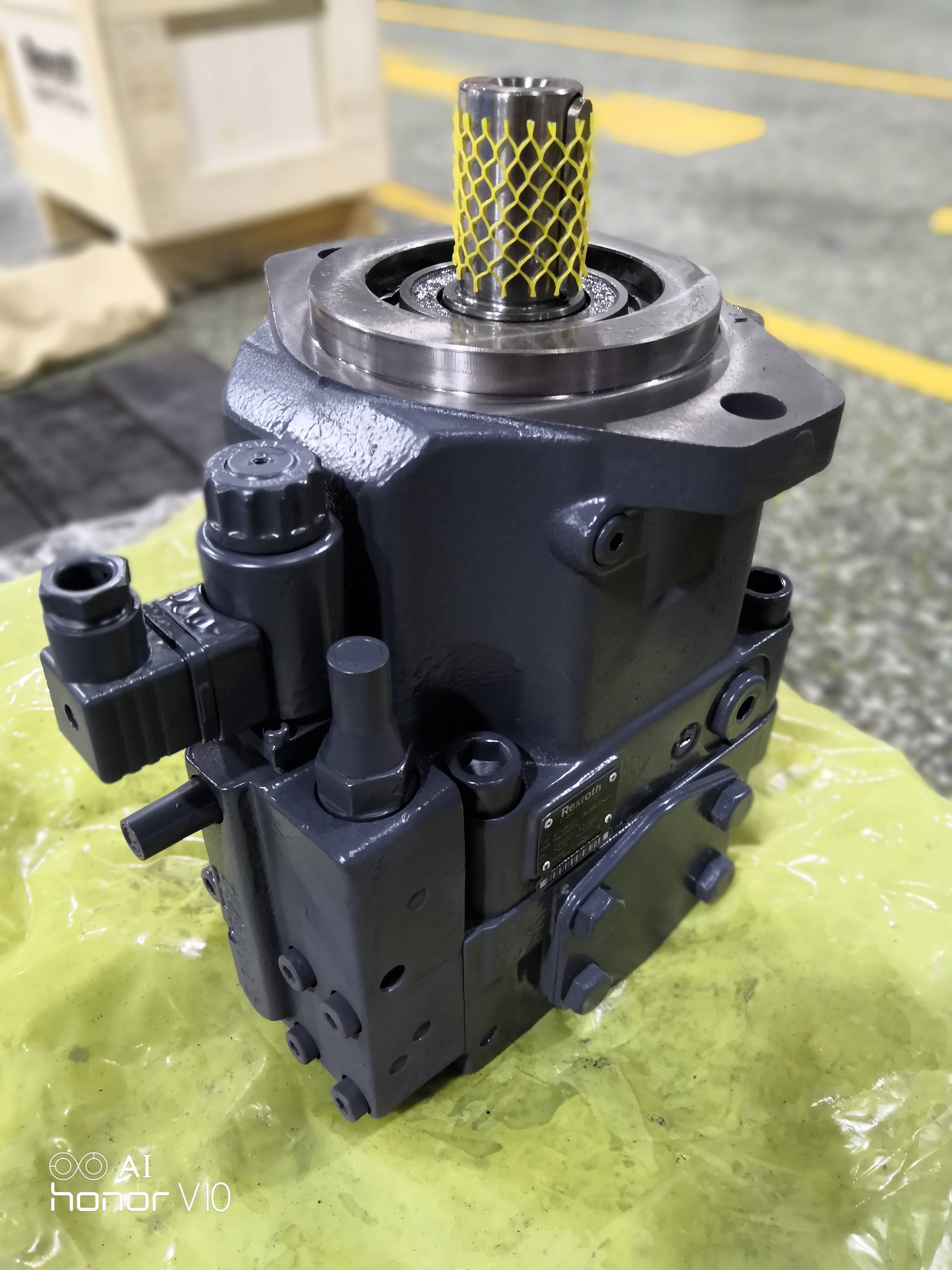

Product photos

  MKS hydraulic specializes in producing, sales and maintenance of hydraulic pumps and motors. The company has been working in hydraulic field since 1995 and wealth professional knowledge and field experience. We have developed and produced A4VSO, A4FO, A4FM, A10VSO, Parker PV varies hydraulic pumps and motors. Other series are also in the researching and developing design. With the concept “quality wins market, integrity casts the brand”, we strictly implement the testing standard and strive to be a hydraulic company worthy of customer’s trust.
  MKS products have been widely used in iron and steel metallurgy, forging, ceramics, water conservancy and hydra-power, construction machinery, ship, mining, agricultural machinery and other fields.

  MKS technical team has more than 10 R&D and designer which committed to research and development of hydraulic components,3D dynamic simulation process to upgrade,cooperating with advanced testing equipment, makes every effort to keep improving of new varieties of each series dedicated high durability efficiency parts as our priority, to meet the needs of users, and pursuit of every perfect products is the aim. The R&D department is a cohesion vitality and pursues of the enterprise brand.

  MKS main products are: plunger pump, vane pump, gear pump, direction valve, pressure valve, flow control valve, proportional valve, cartridge valve and hydraulic fittings, etc. We undertake all kinds of hydraulic system equipment design and manufacturing. The products are widely used in engineering, plastic machinery, shoes, casting, metallurgical, mining, metal cutting tools and other kinds of hydraulic system.
