Bosch Rexroth Axial piston variable pump A4VG Series 32 Construction machinery, agricultural machinery, ships, etc.

Features
▶▶ Integrated auxiliary pump for boost and pilot oil supply
▶▶ Flow direction changes smoothly when the swashplate
is moved through the neutral position
▶▶ High-pressure relief valves with integrated boost
function
▶▶ With adjustable pressure cut-off as standard
▶▶ Boost-pressure relief valve
▶▶ Through drive for mounting of further pumps up to same
nominal size
▶▶ Large variety of controls
▶▶ Swashplate design

Safety instructions
- The A4VG pumps are designed for use in closed circuits.
- Project planning, installation and commissioning of the axial piston units must be carried out by qualified personnel.
- Before using the axial piston unit, please read the corresponding instruction manual in its entirety. It is available from Bosch Rexroth on request.
- During and shortly after operation, there is a risk of burns from the axial piston unit (especially the solenoid). Take appropriate safety measures (e.g. wear protective clothing).
- The characteristics of the axial piston unit may change due to different operating conditions (operating pressure, oil temperature).

Working line ports
· Ports and fixing threads are designed for the maximum specified pressure. The machine or system manufacturer must ensure that the safety factors of the connecting elements and lines meet the specified operating conditions (pressure, flow, hydraulic fluid, temperature).
· Working line ports and function ports are intended for hydraulic lines only.
- The data and instructions contained here must be observed.
- The product cannot be approved as a component in accordance with the general machinery safety concept in accordance with ISO 13849.

Mounting screws
For mounting screws with ISO metric threads to DIN 13 and threads to ASME B1.1, we recommend checking the tightening torques for the respective housing in accordance with VDI 2230.
· Threaded holes of the axial piston unit:
The maximum permissible tightening torque MG max for internal threaded holes is a maximum value and must not be exceeded.
· Locking screws:
For the metal locking screws supplied with the axial piston unit, the required tightening torque MV for the locking screws should be used.

For more detailed parameters of A4VG and other models, please contact our sales staf

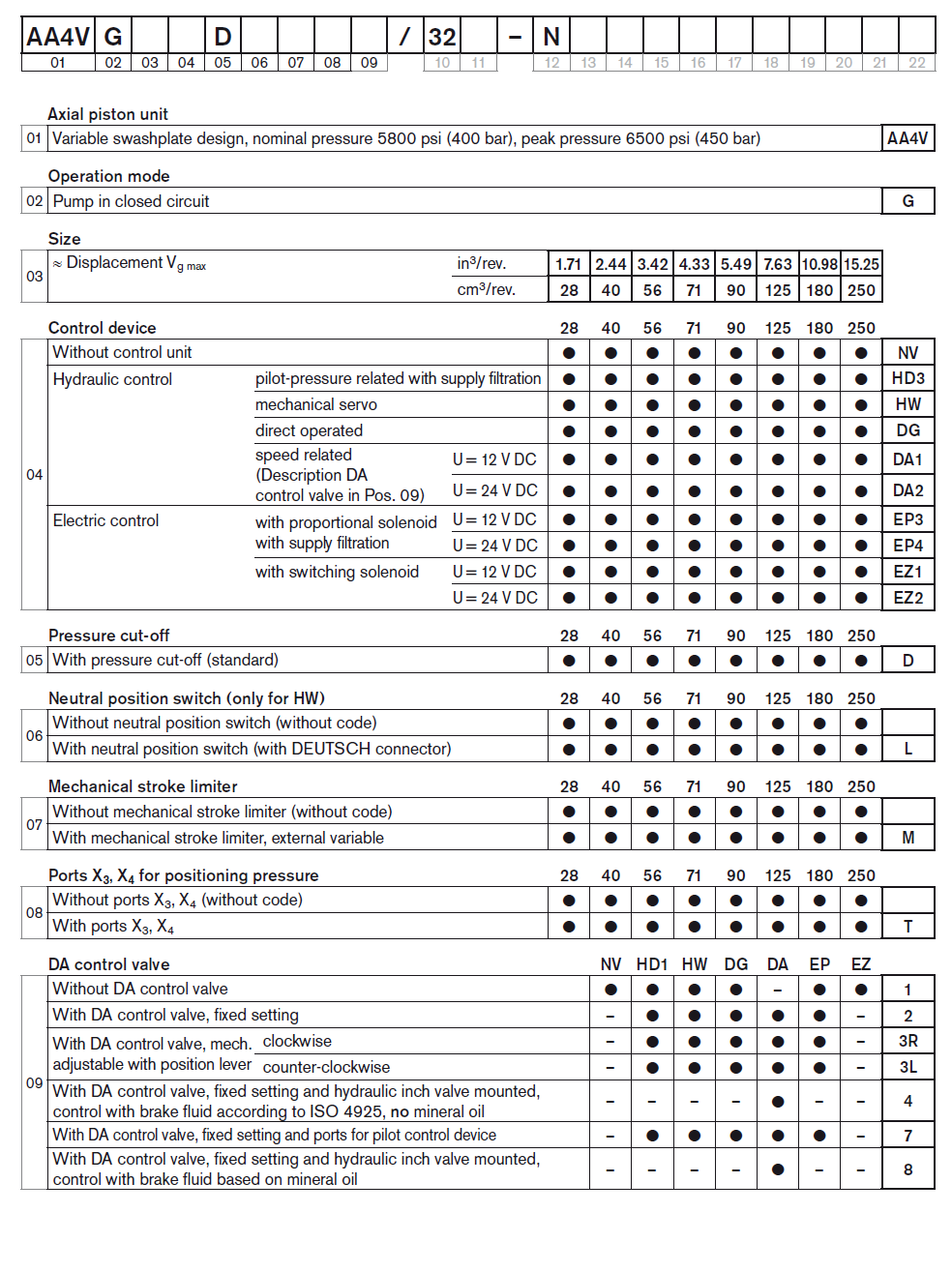

Type code

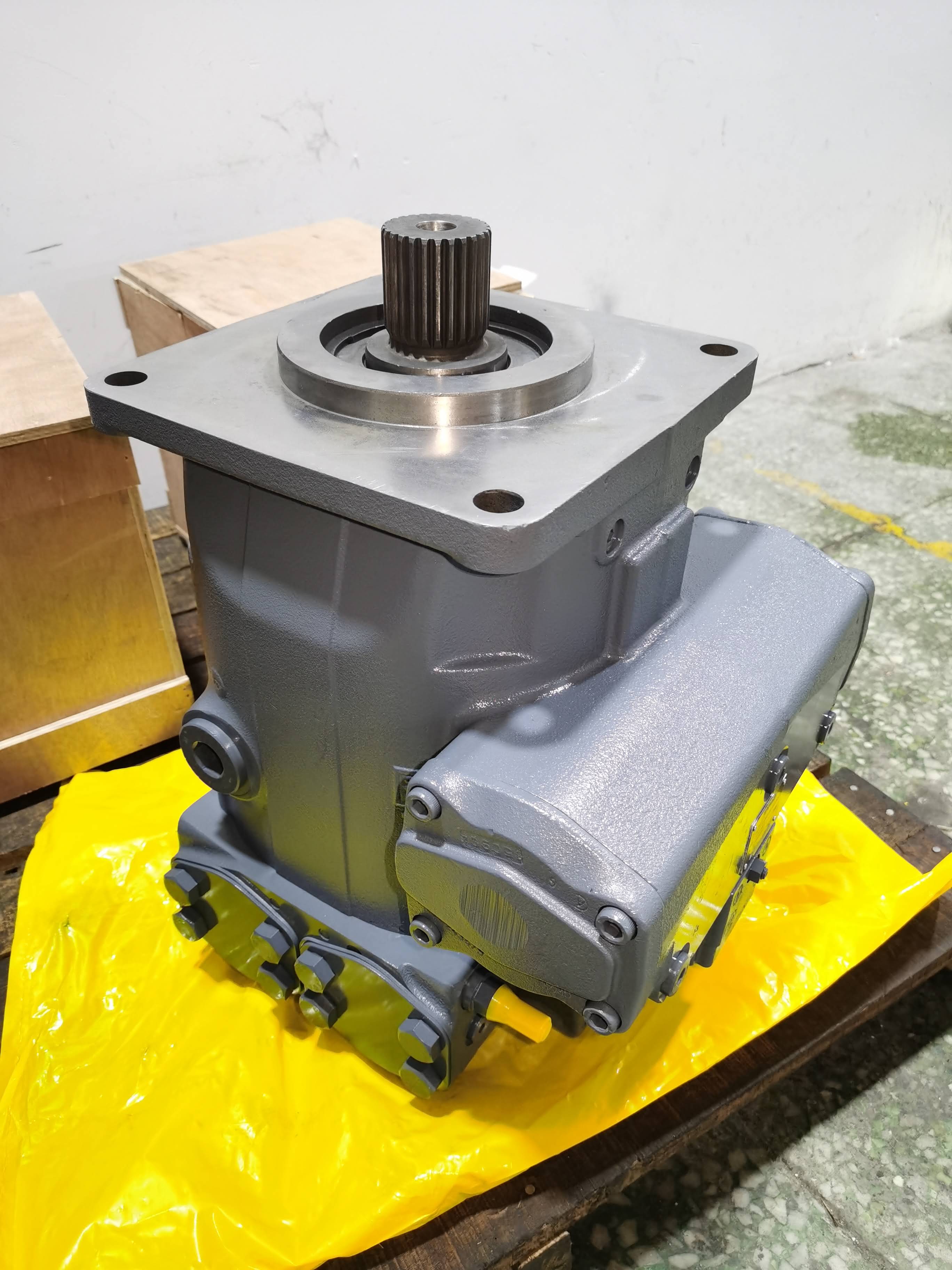

Finished product display

  MKS hydraulic specializes in producing, sales and maintenance of hydraulic pumps and motors. The company has been working in hydraulic field since 1995 and wealth professional knowledge and field experience. We have developed and produced A4VSO, A4FO, A4FM, A10VSO, Parker PV varies hydraulic pumps and motors. Other series are also in the researching and developing design. With the concept “quality wins market, integrity casts the brand”, we strictly implement the testing standard and strive to be a hydraulic company worthy of customer’s trust.
  MKS products have been widely used in iron and steel metallurgy, forging, ceramics, water conservancy and hydra-power, construction machinery, ship, mining, agricultural machinery and other fields.

  MKS technical team has more than 10 R&D and designer which committed to research and development of hydraulic components,3D dynamic simulation process to upgrade,cooperating with advanced testing equipment, makes every effort to keep improving of new varieties of each series dedicated high durability efficiency parts as our priority, to meet the needs of users, and pursuit of every perfect products is the aim. The R&D department is a cohesion vitality and pursues of the enterprise brand.

  MKS main products are: plunger pump, vane pump, gear pump, direction valve, pressure valve, flow control valve, proportional valve, cartridge valve and hydraulic fittings, etc. We undertake all kinds of hydraulic system equipment design and manufacturing. The products are widely used in engineering, plastic machinery, shoes, casting, metallurgical, mining, metal cutting tools and other kinds of hydraulic system.
