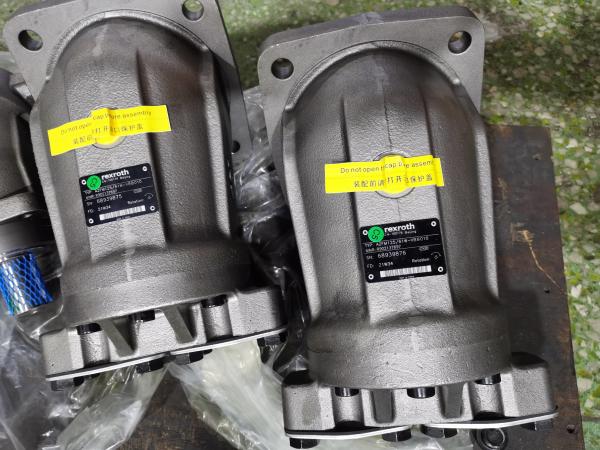

    Cast Iron A2FM500 Hydraulic Motors High Pressure Axial Piston Fixed Motor By Rexroth

    Ask Lasest Price
    Brand Name : Bosch Rexroth
    Model Number : A2FM500
    Certification : GS, RoHS, CE, ISO9001
    Price : discussible
    Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram
    Supply Ability : 500pieces/Year
    Delivery Time : 5days
    • Product Details
    • Company Profile

    Cast Iron A2FM500 Hydraulic Motors High Pressure Axial Piston Fixed Motor By Rexroth

    Cast Iron A2FM500 Hydraulic Motors High Pressure Axial Piston Fixed Motor by Rexroth

    Basic Info.

    We also provide hydraulic equipment from brands such as Rexroth, Parker, Yuken, Danfoss, Eaton, etc. For more details, please consult sales staff

    Technical data
    High pressure motor for integration in mechanical gearboxes
    Size 28 … 355
    Nominal pressure up to 400 bar
    Maximum pressure up 450 bar
    Open and closed circuits
    High pressure motor for integration in mechanical gearboxes
    Open and closed circuits
    Features
    Space-saving construction due to recessed mounting flange
    Easy to install, simply slide into the mechanical gearbox
    High power density
    Very high total efficiency
    High starting efficiency
    Optional with integrated pressure relief valve
    Optional with mounted addifitonal valve: counterbalance valve (BVD/BVE), flushing and boost-pressure valve
    Bent-axis design

    Factory

    Cast Iron A2FM500 Hydraulic Motors High Pressure Axial Piston Fixed Motor By RexrothCast Iron A2FM500 Hydraulic Motors High Pressure Axial Piston Fixed Motor By Rexroth

    Type

    A2FM500 Product model summary
    R910985333 A A2F M 500 /60L-VZH -SO 50 R902406215 A A2F M 500 /60W-VZH010 E R902555620 A A2F M 500 /60W-VPH010F R902491447 AL A2F M 500 /60W-PZH017F -SO117
    R910985433 A A2F M 500 /60L-VZH -SO 52 R902485776 A A2F M 500 /60W-VZH010F -SO103 R902518050 A A2F M 500 /60W-VPH017 R910978369 AL A2F M 500 /60W-VPH010
    R902491448 A A2F M 500 /60W-PZH017F -SO117 R902425464 A A2F M 500 /60W-VZH017 R902411969 A A2F M 500 /60W-VPH017 -SO 43 R902519794 AL A2F M 500 /60W-VPH017
    R910943251 A A2F M 500 /60W-VPH010 R910978439 A A2F M 500 /60W-VZH017 -SO 43 R902481974 A A2F M 500 /60W-VPH017F -SO103 R902535248 AL A2F M 500 /60W-VPH017 E
    R910943659 A A2F M 500 /60W-VPH010 -SO 37 R902554914 A A2F M 500 /60W-VZH017 C R910968982 A A2F M 500 /60W-VZH010 R910995210 AL A2F M 500 /60W-VZH010
    R910975093 A A2F M 500 /60W-VPH010 -SO 46 R902425498 A A2F M 500 /60W-VZH017D -SO103 R902427158 A A2F M 500 /60W-VZH010 -SO 26 R902419946 AL A2F M 500 /60W-VZH010 -SO 26
    R902452486 A A2F M 500 /60W-VPH010 -SO107 R902489620 A A2F M 500 /60W-VZH017F R910946879 A A2F M 500 /60W-VZH010 -SO 37 R986100219 AL A2F M 500 /60W-VZH010 -SO 26
    R902555622 A A2F M 500 /60W-VPH010 C R902490255 A A2F M 500 /60W-VZH017F -SO103 R902542393 A A2F M 500 /60W-VZH010 C R902425462 AL A2F M 500 /60W-VZH017
    R902425496 AL A2F M 500 /60W-VZH017D -SO103 R902424044 AL A2F M 500 /60W-VZH017 -SO 43
