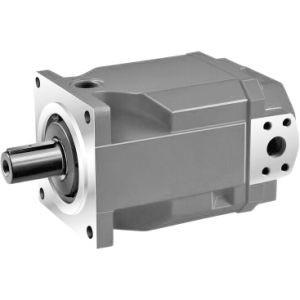

High Pressure V Type Rexroth Hydraulic Pump R902422014 A4FO250/30R-VPB25K02

Guangdong MKS Hydraulic Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Pressure V Type Rexroth Hydraulic Pump R902422014 A4FO250/30R-VPB25K02 from wholesalers

    Buy cheap High Pressure V Type Rexroth Hydraulic Pump R902422014 A4FO250/30R-VPB25K02 from wholesalers
    • Buy cheap High Pressure V Type Rexroth Hydraulic Pump R902422014 A4FO250/30R-VPB25K02 from wholesalers

    High Pressure V Type Rexroth Hydraulic Pump R902422014 A4FO250/30R-VPB25K02

    Ask Lasest Price
    Supply Ability : 500pieces/Year
    Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram
    Brand Name : Bosch Rexroth
    Model Number : A4FO250/30R-VPB25K02
    Certification : GS, RoHS, CE, ISO9001
    Price : discussible
    Delivery Time : 5days
    • Product Details
    • Company Profile

    High Pressure V Type Rexroth Hydraulic Pump R902422014 A4FO250/30R-VPB25K02

    R902422014 A4FO250/30R-VPB25K02 REXROTH HIGH PRESSURE HYDRAULIC OPEN CIRCUIT PUMP

    Basic Info.

    Model NO.
    Rexroth
    After-sales Service
    Free Warranty
    Warranty
    Free Warranty
    Structure
    Axial Plunger Pump
    Cylinder Number
    Single Cylinder
    Drive Mode
    Mechanically Driven Pump
    Pump Shaft Position
    Horizontal
    Type
    V Type
    Power
    Electric
    Straight Shaft Swashplate Piston Type
    Pressureoil
    Radial Plunger Pump Type
    Valve with Flow
    R902543419
    a A4f O 250 /30r-Ppb25ub5
    R902488853
    a A4f O 250 /30r-Pzb25K34
    R902452732
    a A4f O 250 /30r-Pzb25K35
    R902407892
    a A4f O 250 /30r-Pzb25kb2
    R902405596
    a A4f O 250 /30r-Pzb25n00
    R902567145
    a A4f O 250 /30r-Pzb25u33
    R902514305
    a A4f O 250 /30r-Pzb25ub2
    R902422014
    a A4f O 250 /30r-Vpb25K02
    R910999372
    a A4f O 250 /30r-Vpb25n00
    R902551464
    a A4f O 250 /30r-Vzb25n00
    R902551465
    a A4f O 250 /30r-Vzb25u35
    R900241006
    A4fo 250/30L-Ppb25n00
    R910992937
    Ae A4f O 250 /30r-Kpb13n00
    R902423149
    Ae A4f O 250 /30r-Ppb25K02
    R902448613
    Ae A4f O 250 /30r-Ppb25n00
    Trademark
    MKS
    Transport Package
    Wooden Box
    Specification
    cast iron
    Origin
    China
    HS Code
    8413503190

    Product Description

    Technical data
    Sizes 22 and 28
    -- Nominal pressure 400 bar
    -- Maximum pressure 450 bar
    Sizes 71 to 500
    -- Nominal pressure 350 bar
    -- Maximum pressure 400 bar
    Features
    Fixed pump in axial piston swashplate design for hydrostatic drives in an open circuit
    For use in mobile and stationary applications
    Flow is proportional to the drive speed and displacement.
    High power density
    High total efficiency
    Optimized dimensions for special installation situations
    Excellent suction characteristics
    Low noise level
    Long service life
    Economical design
    Through drive for combining additional pumps
    Technical data
    SizeNG222871125180250/H1)500/H1)
    Displacement, geometric, per revolutionVgcm3222871125180250500
    Maximum rotational speed2)nnomrpm360030002200180018001500 /
    1900
    1320
    /1500
    Maximum rotational speed3)nmaxrpm450037502700220021001800 /
    2100
    1600 /
    1800
    Flow at Vg and nnomqVl/min7984156225324375 /
    475
    660 /
    750
    Power at Vg, nnom and
    Δp = 400 bar
    PkW5356914)1314)1894)219 /
    2774)
    385 /
    4384)
    Torque at Vg and Δp = 400 barTNm1401783964)6964)10034)13934)27854)
    Rotary stiffness drive shaftShaft end SckNm/rad29,929,9-----
    Shaft end PckNm/rad--1462603285271145
    Shaft end ZckNm/rad--1462633325431136
    Moment of inertia for rotary groupJGRkgm20,00170,00170,01210,03000,0550,09590,3325
    Maximum angular accelerationarad/s2380003800020000130001000080004800
    Case volumeVl0,30,32,03,04,07,011,0
    Weight (approx.)mkg13,513,5346176120220
