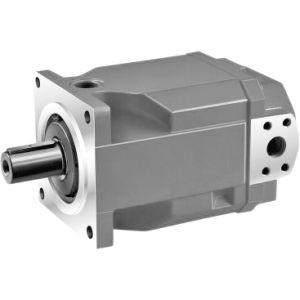

A4fo180 Open Circuit Rexroth Hydraulic Pump With Horizontal V Type Shaft Position

Guangdong MKS Hydraulic Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap A4fo180 Open Circuit Rexroth Hydraulic Pump With Horizontal V Type Shaft Position from wholesalers

    Buy cheap A4fo180 Open Circuit Rexroth Hydraulic Pump With Horizontal V Type Shaft Position from wholesalers
    • Buy cheap A4fo180 Open Circuit Rexroth Hydraulic Pump With Horizontal V Type Shaft Position from wholesalers

    A4fo180 Open Circuit Rexroth Hydraulic Pump With Horizontal V Type Shaft Position

    Ask Lasest Price
    Supply Ability : 500pieces/Year
    Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram
    Brand Name : Bosch Rexroth
    Model Number : A4fo180
    Certification : GS, RoHS, CE, ISO9001
    Price : discussible
    Delivery Time : 5days
    • Product Details
    • Company Profile

    A4fo180 Open Circuit Rexroth Hydraulic Pump With Horizontal V Type Shaft Position

    A4fo180 Hydraulic Open Circuit Pumps with Horizontal V Type Shaft Position by Rexroth

    Basic Info.

    Model NO.
    Rexroth
    After-sales Service
    Free Warranty
    Warranty
    Free Warranty
    Structure
    Axial Plunger Pump
    Cylinder Number
    Single Cylinder
    Drive Mode
    Mechanically Driven Pump
    Pump Shaft Position
    Horizontal
    Type
    V Type
    Power
    Electric
    Straight Shaft Swashplate Piston Type
    Pressureoil
    Radial Plunger Pump Type
    Valve with Flow
    Trademark
    MKS
    Transport Package
    Wooden Box
    Specification
    cast iron
    Origin
    China
    HS Code
    8413503190

    Product Description

    Technical data
    Sizes 22 and 28
    -- Nominal pressure 400 bar
    -- Maximum pressure 450 bar
    Sizes 71 to 500
    -- Nominal pressure 350 bar
    -- Maximum pressure 400 bar
    Features
    Fixed pump in axial piston swashplate design for hydrostatic drives in an open circuit
    For use in mobile and stationary applications
    Flow is proportional to the drive speed and displacement.
    High power density
    High total efficiency
    Optimized dimensions for special installation situations
    Excellent suction characteristics
    Low noise level
    Long service life
    Economical design
    Through drive for combining additional pumps
    Technical data
    SizeNG222871125180250/H1)500/H1)
    Displacement, geometric, per revolutionVgcm3222871125180250500
    Maximum rotational speed2)nnomrpm360030002200180018001500 /
    1900
    1320
    /1500
    Maximum rotational speed3)nmaxrpm450037502700220021001800 /
    2100
    1600 /
    1800
    Flow at Vg and nnomqVl/min7984156225324375 /
    475
    660 /
    750
    Power at Vg, nnom and
    Δp = 400 bar
    PkW5356914)1314)1894)219 /
    2774)
    385 /
    4384)
    Torque at Vg and Δp = 400 barTNm1401783964)6964)10034)13934)27854)
    Rotary stiffness drive shaftShaft end SckNm/rad29,929,9-----
    Shaft end PckNm/rad--1462603285271145
    Shaft end ZckNm/rad--1462633325431136
    Moment of inertia for rotary groupJGRkgm20,00170,00170,01210,03000,0550,09590,3325
    Maximum angular accelerationarad/s2380003800020000130001000080004800
    Case volumeVl0,30,32,03,04,07,011,0
    Weight (approx.)mkg13,513,5346176120220


    A4fo180 Open Circuit Rexroth Hydraulic Pump With Horizontal V Type Shaft PositionA4fo180 Open Circuit Rexroth Hydraulic Pump With Horizontal V Type Shaft Position
