    Cast Iron High Speed Rexroth Hydraulic Motor A2FM250 60W-Vzb027f -So103 ISO9001

    Ask Lasest Price
    Certification : GS, RoHS, CE, ISO9001
    Supply Ability : 500pieces/Year
    Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram
    Brand Name : Bosch Rexroth
    Model Number : A2FM250
    Price : discussible
    Delivery Time : 5days
    • Product Details
    • Company Profile

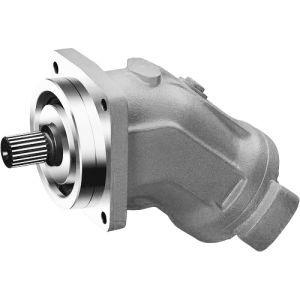

    Cast Iron High Speed Rexroth Hydraulic Motor A2FM250 60W-Vzb027f -So103 ISO9001

    Rexroth High Speed Motor A2FM250 Hydraulic Axial Piston Fixed Motors 60W-Vzb027f -So103

    Basic Info.

    Model NO.
    Rexroth
    Certification
    GS, RoHS, CE, ISO9001
    Excitation Mode
    Excited
    Power Rating
    4000W
    Casing Protection
    Open Type
    Number of Poles
    12
    Speed
    High Speed
    Type
    Plunger Type
    a A2f M 250 /60W-Vzb020
    a A2f M 250 /60W-Vzb020 -So 7
    a A2f M 250 /60W-Vzb020 -So 26
    a A2f M 250 /60W-Vzb020f
    a A2f M 250 /60W-Vzb020f -So103
    a A2f M 250 /60W-Vzb027
    a A2f M 250 /60W-Vzb027 -So 37
    a A2f M 250 /60W-Vzb027f
    a A2f M 250 /60W-Vzb027f -So103
    a A2f M 250 /60W-Vzb040
    a AA2f M 250 /60W-Vsb020 -So 31
    a AA2f M 250 /60W-Vsb020 -So122
    a AA2f M 250 /60W-Vsb510 -So 1
    a AA2f M 250 /60W-VSD510
    a AA2f M 250 /60W-VSD520
    a AA2f M 250 /60W-VSD527
    a AA2f M 250 /60W-VSD527f -So103
    Al A2f M 250 /60W-Pzb010 -So 83
    Al A2f M 250 /60W-Vpb010
    Al A2f M 250 /60W-Vpb027
    a A2f M 250 /60W-Vzb080
    a A2f M 250 /60W-Vzb088 -So 74
    a AA2f M 250 /60W-Vkd510
    a AA2f M 250 /60W-Vkd520
    a AA2f M 250 /60W-Vsb010 -So 34
    Al A2f M 250 /60W-Vzb010
    Al A2f M 250 /60W-Vzb010 -So 12
    Al A2f M 250 /60W-Vzb010f
    Al A2f M 250 /60W-Vzb010f -So103
    Al A2f M 250 /60W-Vzb020
    Trademark
    MKS
    Transport Package
    Wooden Box
    Specification
    cast iron
    Origin
    China
    HS Code
    8412291000

    Product Description

    Technical data
    All-purpose high pressure motor
    Size 5 … 1000
    Nominal pressure up to 400 bar
    Maximum pressure up 450 bar
    Open and closed circuits
    Metric version
    Features
    Large variety of available nominal sizes allows exact adjustment to the application
    High power density
    Very high total efficiency
    High starting efficiency
    Working ports SAE flange or thread
    Optional with integrated pressure relief valve
    Optional with mounted addifitonal valve: counterbalance valve (BVD/BVE), flushing and boost-pressure valve
    Bent-axis design
    Table of values
    Size5101216232832107125160180
    Displacement geometric, per revolutionVgcm³4.9310.3121622.928.132106.7125160.4180
    Nominal pressurepnombar315400400400400400400400400400400
    Maximum pressurepmaxbar350450450450450450450450450450450
    Maximum speednnom rpm100008000800080006300630063004000400036003600
    nmax rpm110008800880088006900690069004400440040004000
    Inlet flow at nnomqVl/min498296128144177202427500577648
    Torque at pnomMNm24.7667610214617920467979610211146
    Rotary stiffnessckNm/rad0.630.921.251.592.562.933.1211.211.917.418.2
    Moment of inertia for rotary groupJTWkg·m²0.000060.00040.00040.00040.00120.00120.00120.01160.01160.0220.022
    Maximum angular accelerationαrad/s²50005000500050006500650065004500450035003500
    Case volumeVl0.170.170.170.20.20.20.80.81.11.1
    Weight (approx.)mkg2.55.45.45.49.59.59.532324545
    Size2002503555007101000
    Displacement geometric, per revolutionVgcm³2002503555007101000
    Nominal pressurepnombar400350350350350350
    Maximum pressurepmaxbar450400400400400400
    Maximum speednnom rpm275027002240200016001800
    nmax rpm3000
    Inlet flow at nnomqVl/min550675795100011361600
    Torque at pnomMNm127313931978278539555570
    Rotary stiffnessckNm/rad57.373.196.1144270324
    Moment of inertia for rotary groupJTWkg·m²0.03530.0610.1020.1780.550.55
    Maximum angular accelerationαrad/s²11000100008300550043004500
    Case volumeVl2.72.53.54.288
    Weight (approx.)mkg6673110155325336
