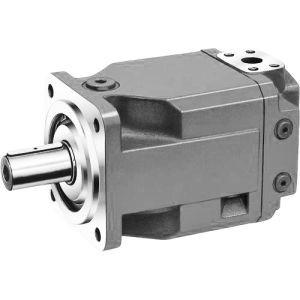

A4FM250 Bosch Rexroth Hydraulic Motor 4000W High Speed Axial Piston Fixed Motors

Guangdong MKS Hydraulic Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap A4FM250 Bosch Rexroth Hydraulic Motor 4000W High Speed Axial Piston Fixed Motors from wholesalers

    Buy cheap A4FM250 Bosch Rexroth Hydraulic Motor 4000W High Speed Axial Piston Fixed Motors from wholesalers
    • Buy cheap A4FM250 Bosch Rexroth Hydraulic Motor 4000W High Speed Axial Piston Fixed Motors from wholesalers

    A4FM250 Bosch Rexroth Hydraulic Motor 4000W High Speed Axial Piston Fixed Motors

    Ask Lasest Price
    Certification : GS, RoHS, CE, ISO9001
    Supply Ability : 500pieces/Year
    Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram
    Brand Name : Bosch Rexroth
    Model Number : A4FM250
    Price : discussible
    Delivery Time : 5days
    • Product Details
    • Company Profile

    A4FM250 Bosch Rexroth Hydraulic Motor 4000W High Speed Axial Piston Fixed Motors

    High Voltage High Speed Motor A4FM250 Hydraulic Axial Piston Fixed Motors by Rexroth

    Basic Info.

    Model NO.
    Rexroth
    Certification
    GS, RoHS, CE, ISO9001
    Excitation Mode
    Excited
    Power Rating
    4000W
    Casing Protection
    Open Type
    Number of Poles
    12
    Speed
    High Speed
    Type
    Plunger Type
    R902416188
    a A4f M 250 /30W-Vpb01 -S1075
    R902455492
    a AA4f M 250 /30W-VSD52K07 Es1625
    R987034130
    A4FM 250/30W-Nzb01
    Trademark
    MKS
    Transport Package
    Wooden Box
    Specification
    cast iron
    Origin
    China
    HS Code
    8412291000

    Product Description

    Technical data
    High pressure motor for confined installation spaces
    Sizes 71 to 1000
    Nominal pressure 350 bar
    Maximum pressure 400 bar
    Open and closed circuit
    Features
    Particularly well suited for applications, where a compact installation size is required
    High tolerance to torsional vibrations
    Long service life at high pressures
    Very high total efficiency
    Low noise
    Swashplate design
    Technical data
    SizeNG711252505001000
    Geometric displacement, per revolutionVgcm3711252505001000
    Maximum rotational speed1)nnomrpm32002600220018001600
    Inlet flow at Vg and nnomqVl/min2273255509001600
    Power at Vg, nnom and
    Δp = 350 bar
    PkW91131277525933
    Torque at Vg and Δp = 350 barMNm396696139327835565
    Torque constantMKNm/bar1.131.993.977.9515.9
    Rotary stiffness Drive shaftShaft end PckNm/rad14626052711452730
    Shaft end ZckNm/rad14626354311362845
    Moment of inertia of the rotary groupJTWkgm20.01210.03000.09590.33251.20
    Actual starting torque
    at n= 0 rpm and Δp = 350 bar (approx.)
    Nm320564112722544507
    Maximum angular accelerationarad/s22000013000800028001450
    Case volumeVl2.03.07.011.027
    Weight (approx.)mkg3461120220423

    A4FM250 Bosch Rexroth Hydraulic Motor 4000W High Speed Axial Piston Fixed MotorsA4FM250 Bosch Rexroth Hydraulic Motor 4000W High Speed Axial Piston Fixed Motors
