Kawasaki series Hydraulic pump Accessories_piston Variable pumps Parts

    Buy cheap Kawasaki series Hydraulic pump Accessories_piston Variable pumps Parts from wholesalers

    Buy cheap Kawasaki series Hydraulic pump Accessories_piston Variable pumps Parts from wholesalers
    • Buy cheap Kawasaki series Hydraulic pump Accessories_piston Variable pumps Parts from wholesalers
    • Buy cheap Kawasaki series Hydraulic pump Accessories_piston Variable pumps Parts from wholesalers

    Kawasaki series Hydraulic pump Accessories_piston Variable pumps Parts

    Ask Lasest Price
    Brand Name : Kawasaki
    Model Number : piston pumps Parts
    Certification : GS, RoHS, CE, ISO9001
    Price : discussible
    Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram
    Supply Ability : 500pieces/Year
    Delivery Time : 5days
    • Product Details
    • Company Profile

    Kawasaki series Hydraulic pump Accessories_piston Variable pumps Parts

    Kawasaki series Hydraulic pump Accessories_piston Variable pumps Parts

    Hydraulic pumps are critical components of hydraulic systems, converting mechanical energy into hydraulic energy. They generate flow with enough power to overcome the pressure induced by the load. Here's a breakdown of the typical parts you would find in a hydraulic pump:

    Cam Ring: In certain vane and piston pumps, the cam ring's shape helps convert the rotary motion into the linear motion needed to pump the fluid.

    Drive Shaft: Connects to the power source (like an engine or motor) and transfers that power to the rotating group.

    Swash Plate: In axial piston pumps, a swash plate is used to convert the rotary motion into the piston's reciprocating motion.

    Control Valve: Directs the flow of fluid in and out of the pump.

    Seals and Gaskets: These components ensure that the pump maintains its pressure by preventing fluid from leaking between the different moving parts and from the pump itself.

    Bearings and Bushings: Provide support and reduce friction for the rotating parts.

    Inlet and Outlet Ports: These are the paths through which the fluid enters and leaves the pump.

    Relief Valve: This is a safety feature that allows fluid to bypass the outlet if the pressure becomes too high within the pump.

    Maintenance of these parts is crucial to keep the hydraulic pump running efficiently and to avoid breakdowns. Wear and tear over time can lead to failures, and regular inspections can catch issues before they lead to larger problems.


    K3SP36C PUMP

    1.缸体 cylinder block

    2.柱塞 piston shoe

    3.球铰 ball guide

    4.配油盘 valve plate

    5.传动轴 drive shaft

    6.回程盘 retainer plate

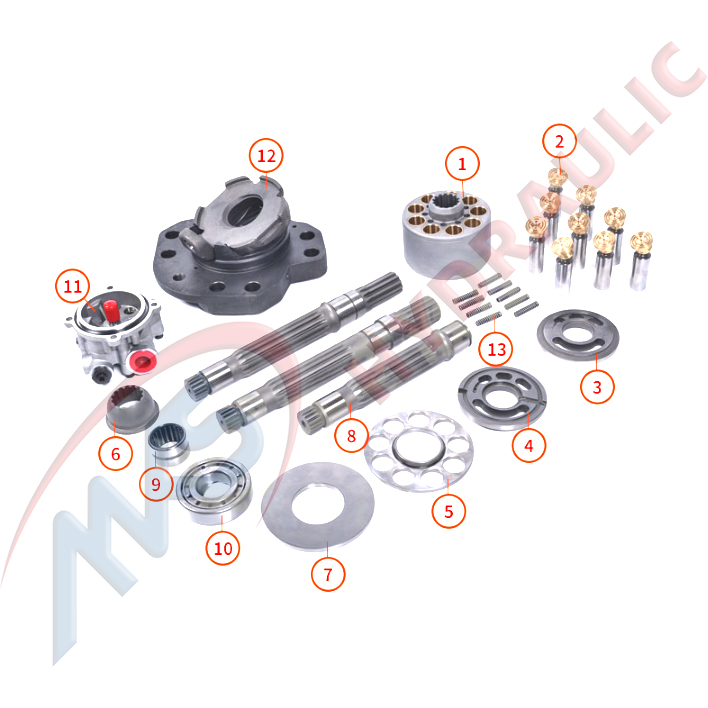

    K3V45/63/112/140/180/280DT

    1.缸体 cylinder block

    2.柱塞 piston shoe

    3/4配油盘 valve plate

    5.回程盘 retainer plate

    6.球铰 ball guide

    7.止推板 thrust plate

    8. 传动轴 drive shaft

    9. 小轴承 small bearing

    10. 大轴承 big bearing

    11.齿轮泵 gear pump

    12. 摇摆总成 swash plate assy

    13. 小弹簧 block spring

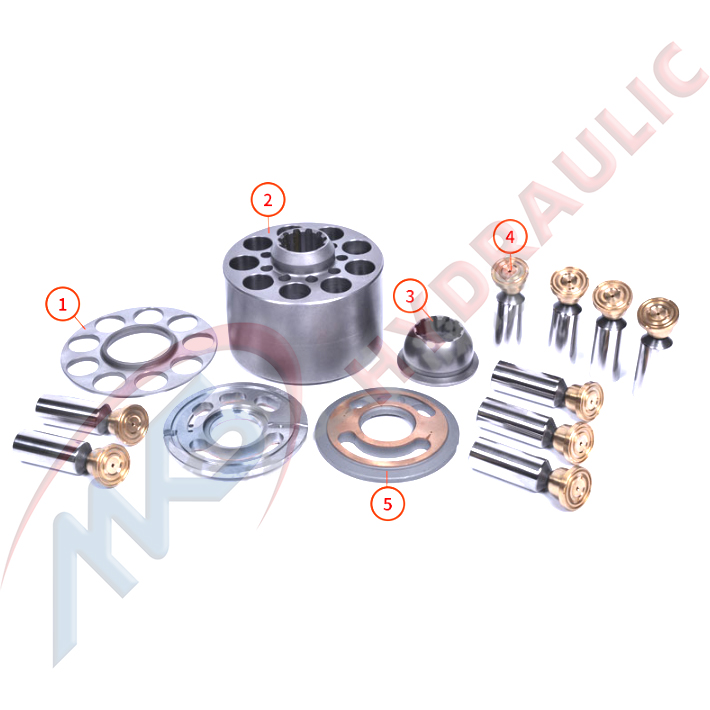

    K5V80/140/160/180/200

    1.配油盘 valve plate

    2.缸体 cylinder block

    3.球铰 ball guide

    4.柱塞 piston shoe

    5.回程盘 retainer plate

    6.传动轴 drive shaft

    K5V80/140/160/180/200

    1.回程盘 retainer plate

    2.缸体 cylinder block

    3.球铰 ball guide

    4.柱塞 piston shoe

    5.配油盘 valve plate

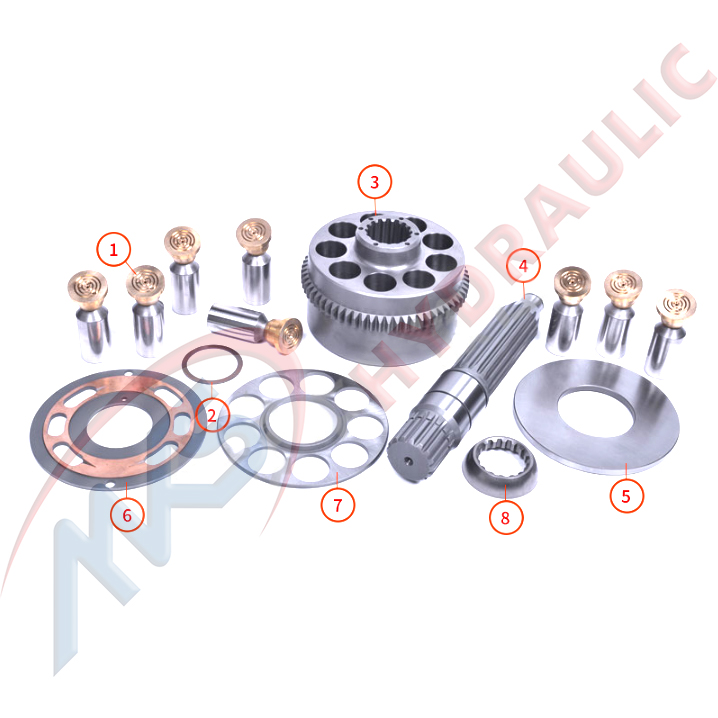

    M2X22/45/55/63/96/120/128/146/150/170/210 SWING

    1.柱塞 piston shoe

    2.球铰垫片 ball guide spacer

    3.缸体 cylinder block

    4.传动轴 drive shaft

    5.止推板 thrust plate

    6.配油盘 valve plate

    7.回程盘 retainer plate

    8.球铰 ball guide

    M5X130/180 SWING

    1.缸体 cylinder block

    2.柱塞 piston shoe

    3.回程盘+介子 retainer plate + retainer

    4.配油盘 valve plate

    5.止推板 thrust plate


    Quality Kawasaki series Hydraulic pump Accessories_piston Variable pumps Parts for sale
